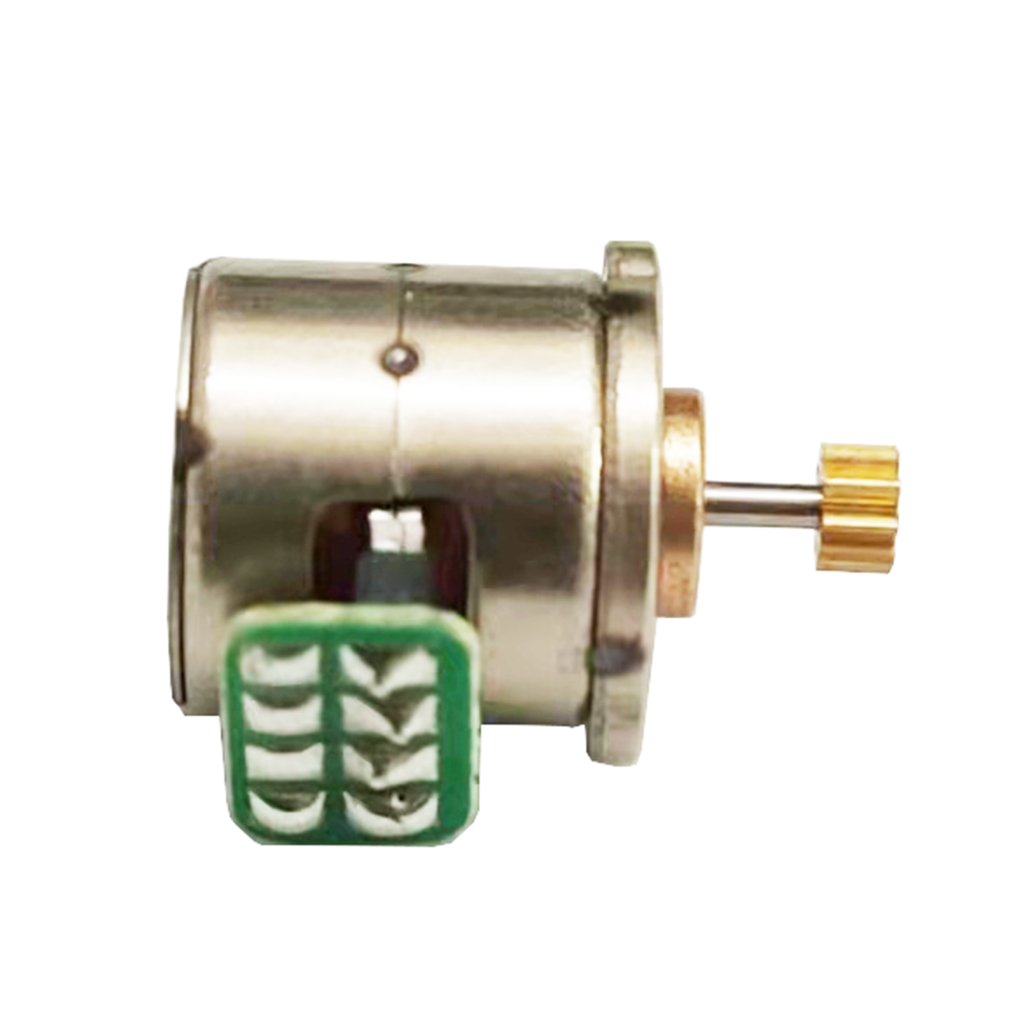

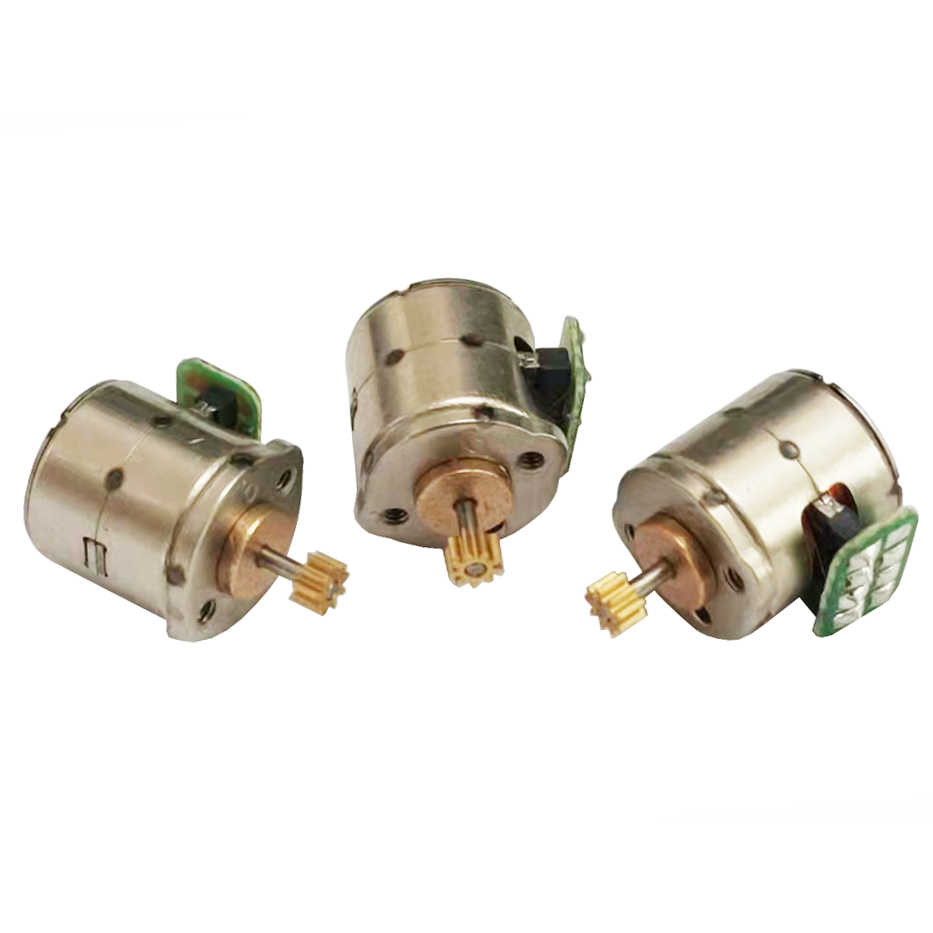

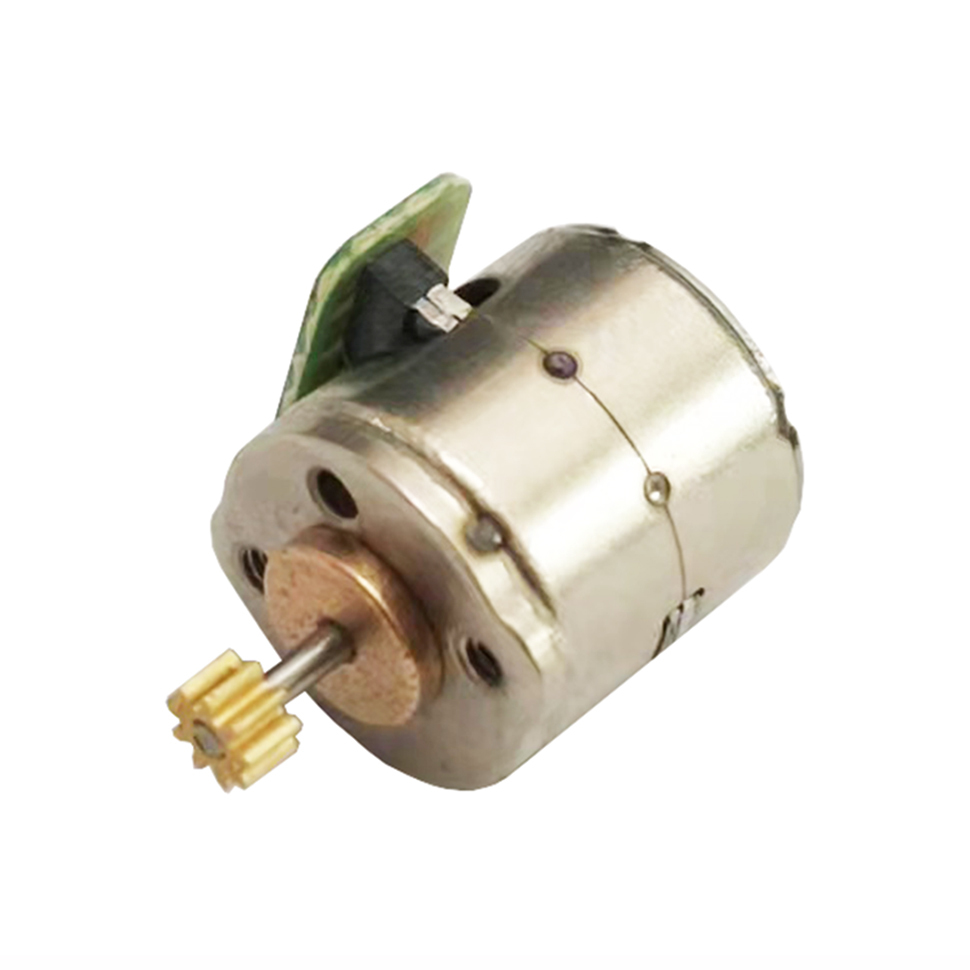

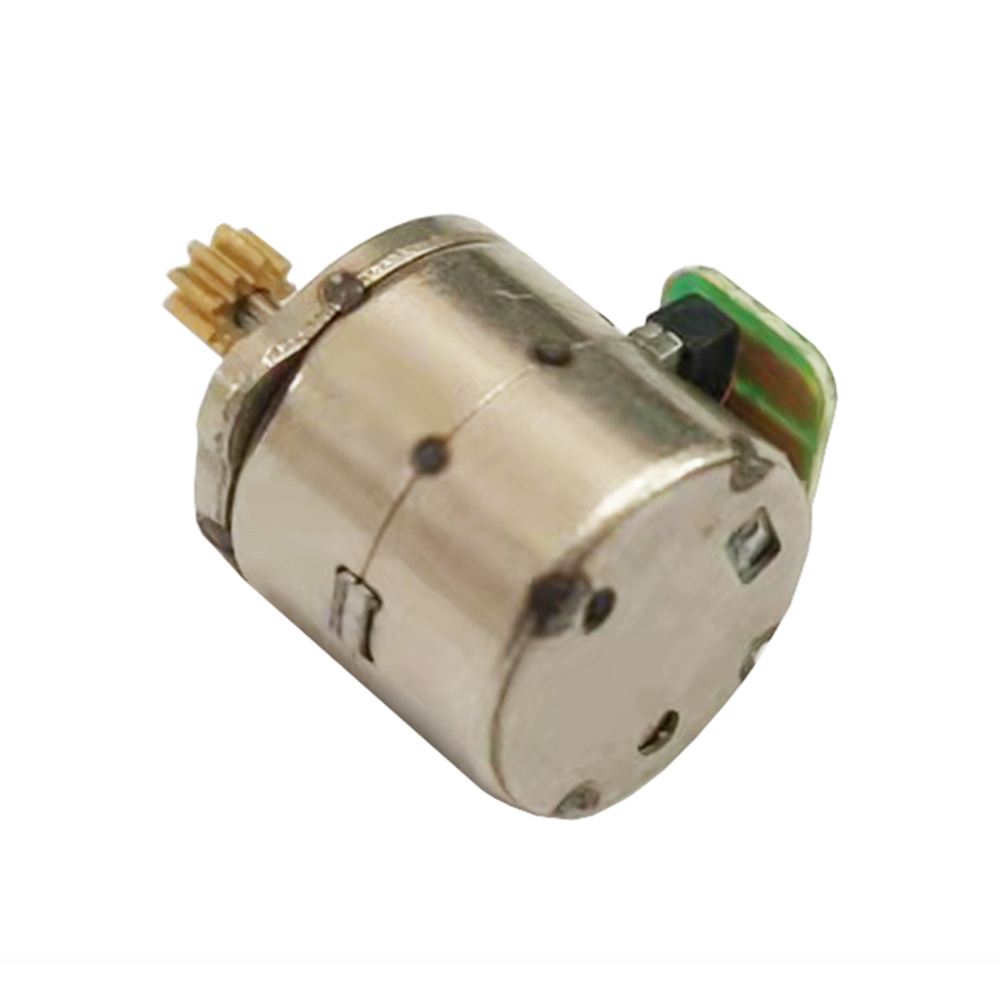

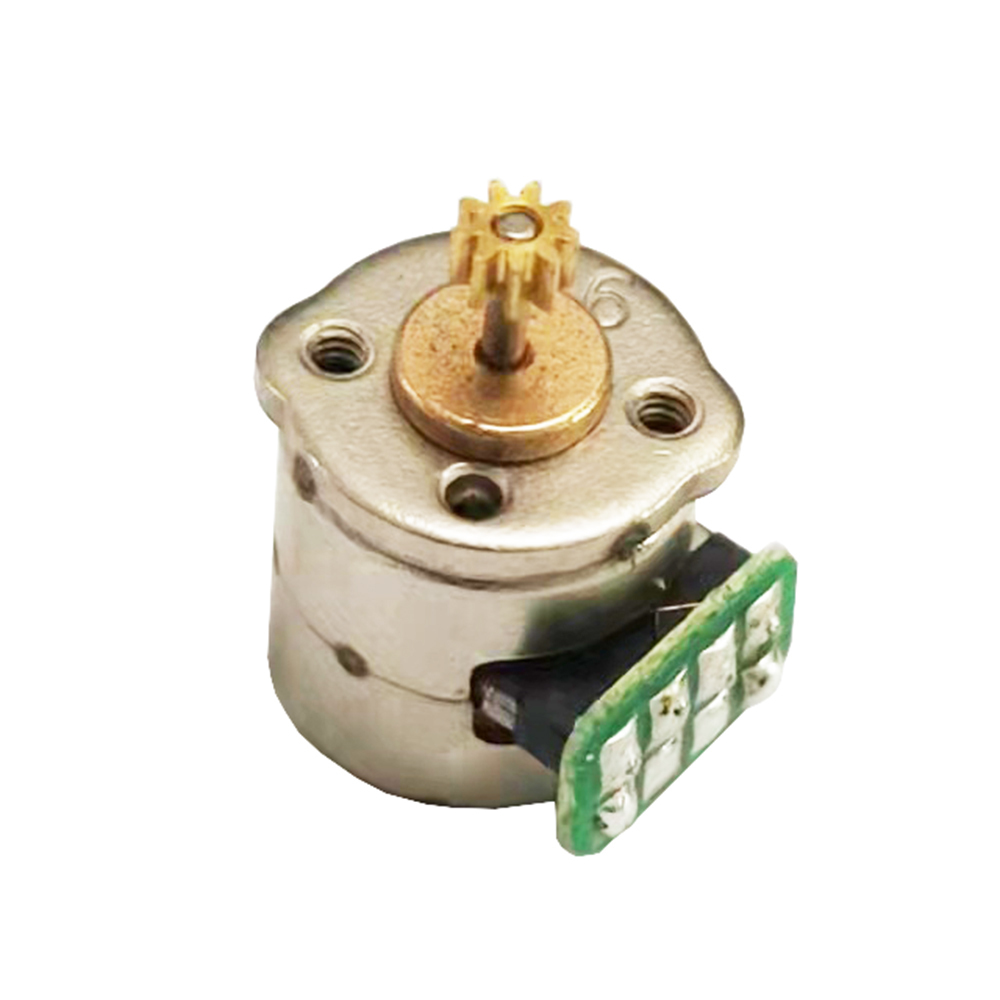

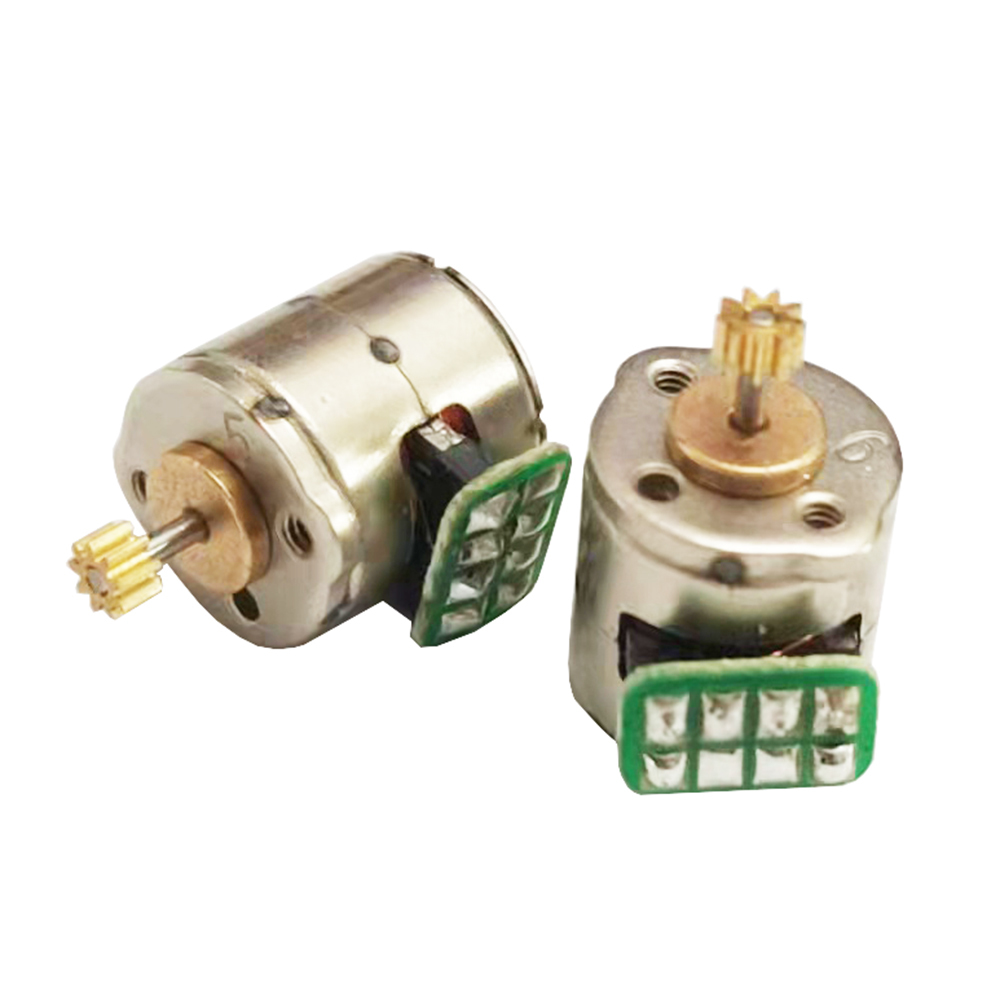

8mm Micro Stepper Motor 2 Phase 18 Degree Precision VSM08133

Place of Origin	Jiangsu, China
Marca	VIC-TECH
Certificação	RoHS
Model Number	VSM08133
Minimum Order Quantity	2
Preço	$1.50-5

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

Detalhes do produto

Body diameter	8MM	Body length	8.2MM
Shaft diameter	1MM	Step angle	18 degree
Steps per revolution	20	Rated voltage	3.3V
Current per phase	100 mA	Coil resistance	40 Ω±7%
Number of phases	2	Excitation method	2 Phase Excitation
Drive mode	Bipolar Drive	Pull-in torque	0.8 gf.cm
Pull-out torque	1.0 gf.cm	Max response frequency	1000 pps
Max starting frequency	1200 pps
Destacar	8mm micro stepper motor , 2 phase stepper motor , 18 degree precision stepper motor

Deixe um recado

Descrição de produto

High Precision 2 Phase 4 Wire 18 Degree 8mm Micro Stepper Motor

Product Attributes

Attribute	Value
Warranty	Other
Phase	2
Type	Permanent Magnet
Current / Phase	385mA

Product Description

The VSM08133 is a precision long-life micro stepper motor with an 8mm outer diameter and 8.2mm body length. It features a 1mm shaft diameter with customizable length options, and can be equipped with gears, pulleys, worms, screws, and other output devices.

With a basic step angle of 18 degrees, this motor completes 20 steps per revolution. Its compact size, high precision, and easy control make it ideal for applications in cameras, optical instruments, lenses, flashlights, precision medical equipment, and automatic door locks.

The motor input features FPC connectivity, but can be customized with connecting line needles, PCB, or other forms per customer requirements. Mounting brackets can also be modified to suit specific needs. We provide matching drive systems to complete your solution.

Our team brings over 10 years of stepper motor design, development, and production experience, enabling us to deliver custom product development and auxiliary design services for specialized applications.

Design Layout (Unit: mm)

Specification

Product Name	8mm micro stepper motor
Model	VSM08133
Rated Voltage	3.3V
Current Per Phase	100 mA /phase
Coil Resistance	40 Ω±7%
No. Of Phase	2 Phases
Step Angle	18 degree
Excitation Method	2 Phase Excitation
Drive Mode	Bipolar Drive
Pull-In Torque	0.8 gf.cm (AT 3.3V DC)
Pull-Out Torque	1.0 gf.cm (AT 3.3V DC)
Max. Response Frequency	1000 pps (AT 900 PPS, 3.3V DC)
Max. Starting Frequency	1200 pps (AT 900 PPS, 3.3V DC)
Insulation Class	Class E for Coils
Insulation Strength	300 V AC for One Second
Insulation Resistance	1.0 MΩ (DC 100 V)
Operating Temperature Range	-30~+70 ℃
Weight	10 g (Ref.)

Packing & Delivery

Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100-1000 pieces per box
Lead Time: 30 Days After Deposit

Company Profile

Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motors and accessories since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we offer custom design and development services. Through our commitment to honesty, dependability, and quality, Vic-Tech Motor continues to pioneer in global markets by establishing international partnerships.

1. Who are we?

Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.

2. How can we guarantee quality?

We conduct pre-production sampling before mass production and perform final inspections before shipment.

3. What can you buy from us?

Our product offerings include stepper motors, linear motors, geared motors, micro motors, and BLDC motors.

4. Why should you buy from us?

Since 2011, Vic-Tech Motor has specialized in micro motor production, including stepper motors, geared motors, underwater thrusters, and motor controllers. We provide custom design and development services to meet your specific requirements.

5. What services can we provide?

Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Methods: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
