15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution

  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
  • 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution
Lugar de origem Jiangsu, China
Marca VIC-TECH
Certificação RoHS
Número do modelo SM15-45L
Quantidade de ordem mínima 2
Preço $6.31-15

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Diâmetro do motor 15mm Tensão nominal C.C. 6V
Resistência da bobina 15 ± 10% de ohm/FAZENTE ((20°C) Corrente pela fase 400 ma/fase (1000pps)
Fases de No.of 2 fases Ângulo de passo 18°/step
Método de excitação 2-2fases Modo de unidade Dispositivo bipolar
Propulsão de extracção Mais de 200 g a 500 pps Frequência máxima de resposta Mais de 1200 pps
Frequência máxima de olhar Mais de 900 pps Classe de isolamento Classe E para bobinas
Força da isolação 100 V AC por um segundo Resistência ao isolamento 50mΩ DC 500V
Faixa de temperatura operacional -0~+55°C
Destacar

385mA Micro Stepper Motor

,

0.02mm Resolution Permanent Magnet Stepper Motor

,

6V DC 2 Phase Stepper Motor
Deixe um recado
Descrição de produto
15mm Screw Slider Stepper Motor 2 Phase PM Micro Stepper Motor

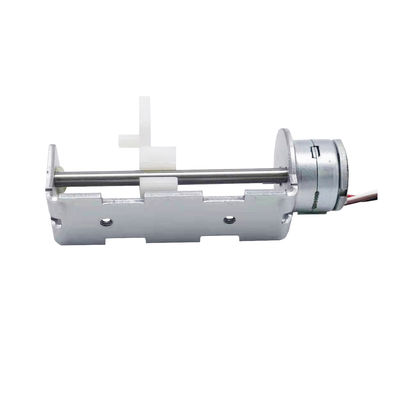

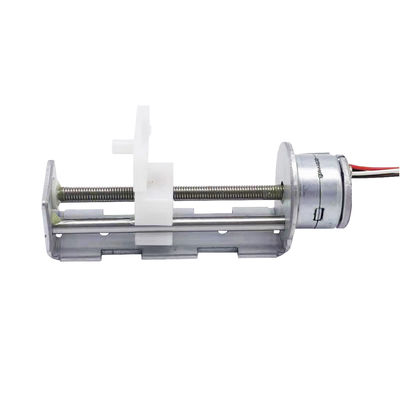

15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 0 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 1
The SM15-45L is a precision screw motor featuring a 0.4mm pitch between the output shaft and screw. The screw rotation generates thrust, with a basic step angle of 18 degrees (20 steps per revolution) achieving a displacement resolution of 0.02mm for precise control. The actuator uses subdivision drive mode to meet application requirements.
Our team brings over 10 years of stepper motor design, development, and production experience, offering custom product development and auxiliary design services tailored to your specific needs.
Product Images

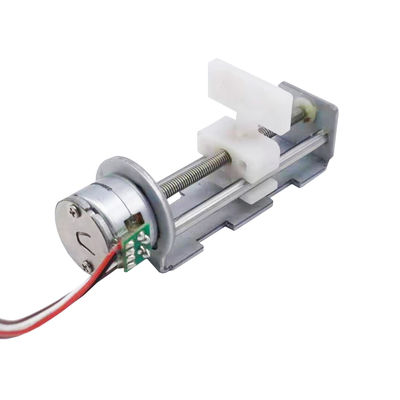

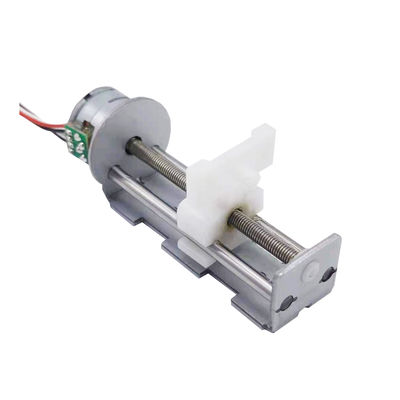

15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 2 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 3
Design Layout (Unit: mm)
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 4 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 5
Specifications
Model No. SM20-45L-S
Motor diameter 15mm
Rated Voltage 6V DC
Coil Resistance 15±10% ohm/PHASE(20℃)
Current Per Phase 400 mA/Phase(1000pps)
No.Of Phases 2 Phases
Step Angle 18°/Step
Excitation Method 2-2Phases Drive
Drive Mode Bipolar Drive
Pull-out Thrust More Than 200 g At 500 pps
Max Response Frequency More Than 1200 PPS
Max Staring Frequency More Than 900 PPS
Insulation Class CLASS E FOR COILS
Insulation Strength 100 V AC FOR ONE SECOND
Insulation Resistance 50MΩ DC 500V
Operating Temperature Range -0~+55℃
Packing & Delivery
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 6 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 7
Selling Units: Single item plastic box inner, outer paper box
Package: Single carton packing, 100 - 1000 pieces per box
Lead Time: 30 Days After Deposit
Company Profile
15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 8 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 9 15mm Screw Slider 2 Phase Permanent Magnet Stepper Motor with 385mA Current and 0.02mm Resolution 10
Changzhou Vic-Tech Motor Technology Co., Ltd has specialized in micro motor production since 2011. Our product range includes micro stepper motors, geared motors, underwater thrusters, and motor drivers/controllers. With an R&D team boasting 20 years of motor development experience, we provide custom design and development services. Through our commitment to honesty, reliability, and quality, Vic-Tech Motor continues to pioneer international sales by establishing global partnerships.
Frequently Asked Questions
1. Who are we?
Based in Jiangsu, China since 2011, we serve Domestic Market (35%), North America (25%), Northern Europe (20%), Western Europe (10%), and Southeast Asia (10%). Our team consists of 51-100 professionals.
2. How can we guarantee quality?
We conduct pre-production samples before mass production and final inspections before shipment.
3. What can you buy from us?
Our product range includes stepper motors, linear motors, geared motors, micro motors, and BLDC motors.
4. Why should you buy from us?
Vic-Tech Motor specializes in micro motor production since 2011, offering micro stepper motors, geared motors, underwater thrusters, and controllers with custom design services.
5. What services can we provide?
Delivery Terms: FOB, CIF, EXW, DDP
Payment Currency: USD, EUR, CNY
Payment Type: T/T, Credit Card, PayPal, Cash
Languages: English, Chinese
