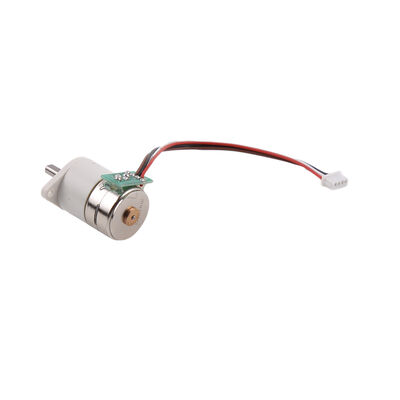

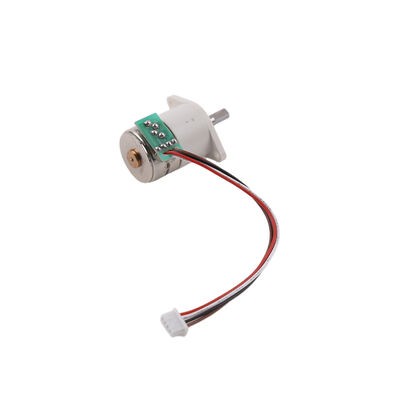

15BY gear stepper motor 5VDC high-precision stepper motor with POM white shell 2-phase 4-wire bipolar stepper motor

15mm mini Geared stepper motor 5V Pm Stepping Gear motor

This motor is composed of a 15mm diameter miniature stepper motor and a 10 * 12 precision metal gearbox. The gearbox is protected by a white shell, which helps to increase its service life. The reduction ratio can be customized according to customer needs.
The basic step angle of the motor is 18 degrees, which means 20 steps per rotation. With the reduction effect of the gearbox, the final resolution of the motor rotation angle can reach 0.05~6 degrees, which can be used for various precise control of magnetic field rotation positions.
The conventional gear reduction ratios include 1:5, 1:10, 1:20, 1:30, 1:50, 1:63, 1:150, 1:298, 1:380, and 1:420. Customers can match the speed ratio according to different torque and speed requirements, and given an appropriate driving frequency, stepper motors can achieve the goal of determining speed and torque.
If you cannot accurately determine the required output speed, you can send us the approximate required speed and load weight, and we can recommend a similar gear reduction ratio for you to test

Mechanical Dimension:MM

Technical Features

This product gear box uses the most advanced equipment in the international processing related parts, so the high precision, high efficiency, low noise, and the use of reasonable and reliable process, make the product has better reliability.
The power input part and standard stepper motor can be used as probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output structure, such as the circular axis, D axis, and the wire rod!

Typical Applications

• Saliva Analyzer
• Blood Analyzer
• Welding Machine
• Intelligent Security Products
• Fiber Fusion Splicer
• Digital Electronics

Specifications

Product Detail Presentation
