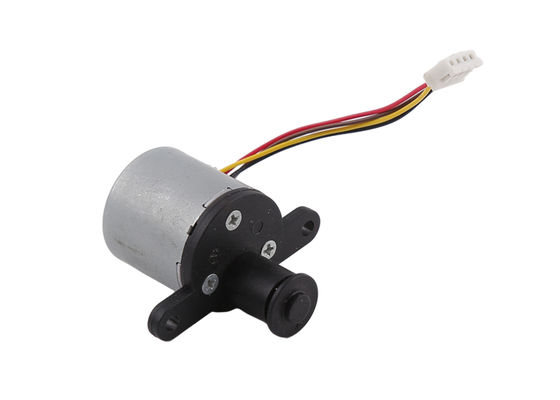

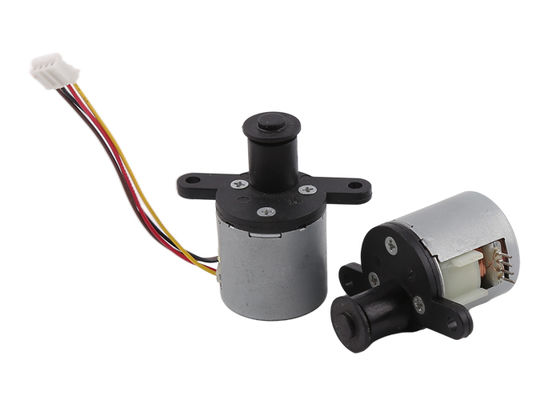

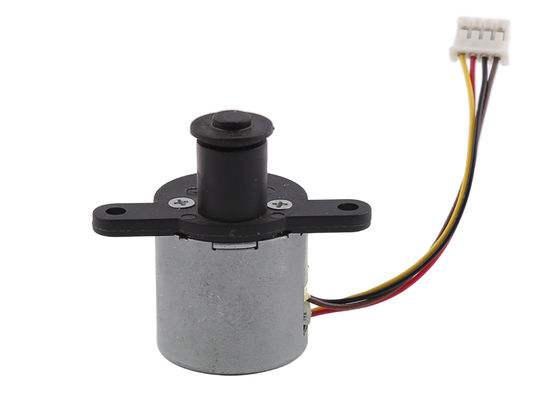

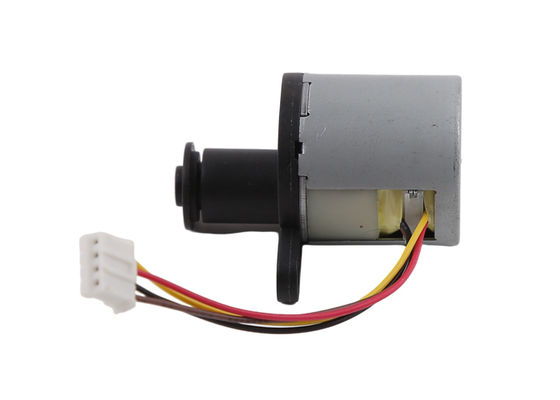

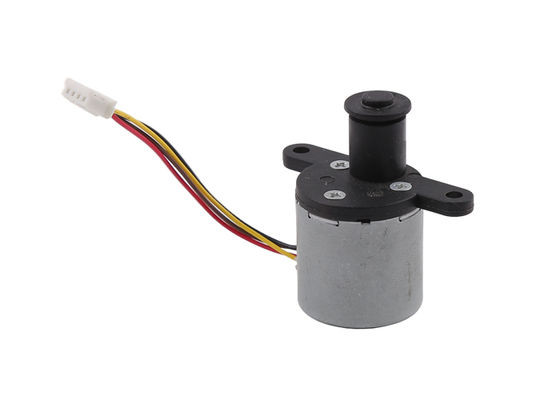

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor

  • Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor
  • Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor
  • Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor
  • Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor
  • Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor
  • Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor
Lugar de origem CHINA
Marca VIC-TECH
Certificação RoHS
Número do modelo 25BYJ412
Quantidade de ordem mínima 1Unit
Preço $2.99~5.5/unit
Detalhes da embalagem Pacote de exportação padrão, ou pode ser personalizado
Tempo de entrega 15-30 dias de trabalho
Termos de pagamento MoneyGram, Western Union, cartão de crédito, T/T, L/C
Habilidade da fonte 10000 unidades/mês

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

bate-papo: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tipo Engrenagem do motor Construção Ímã permanente
Corrente Contínua (A) Personalizado Certificação ROHS
Tensão (V) 3.3VDC Relação de redução da engrenagem 1:10
Propulsão nominal 70N Curso 5mm
Deixe um recado
Descrição de produto

High Quality stepper motor valve 3.2v geared stepper motors

High torque 25mm diameter 3.3VDC low-noise linear stepper motor, suitable for intelligent TRV wireless wifi Bluetooth constant temperature radiator motor
This is a 25mm diameter stepper motor, with installation ear hole distances of 31mm and 37mm to choose from. The motor can be wired with a bare needle or a connecting wire, with a screw stroke of 5mm and a thrust of approximately 70N, depending on the customer's driving conditions
Our R&D team has over 10 years of work experience and can develop and customize motors according to customer needs
For ear installation, customization can also be made according to customer needs, and thrust can also be customized according to customer preferences
If you have any questions, please feel free to contact us at any time. We look forward to the opportunity to cooperate with your company

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 0

Mechanical Dimension:MM

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 1

Typical Applications

  • Saliva Analyzer
  • Blood Analyzer
  • Welding Machine
  • Intelligent Security Products
  • Fiber Fusion Splicer
  • Digital Electronics

Specifications

Product Name 25 mm geared stepper motor
Model 25BYJ412-9L
Resistance 100 mΩ±7%/phase
Starting Frequency 500 pps ,400 PPS min. (AT 5V DC)
Response Frequency 900 pps ,450PPS min. (AT 5V DC)
Detent Torque 29.4mN.m
Operating Temperature Range -0~+55 ℃
OEM & ODM SERVICE

AVAILABLE



Torque Curve For Reference

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 2





Type of Wire Connect

Motor input method with Pin type,FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 3

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 4

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 5

Product Detail Presentation

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 6

Packaging and Shipping information:

All samples are packed in foam sponges in cartons.

For mass production, mass-produced products are packaged in cartons.

For sea shipping (mass production), cartons are packed on pallets.

Shipping time:

By express(DHL/ UPS/ Fedex/ TNT): 5~12 days

By 4PX express: 10~20 days

Sea shipping: 40~60 days (depends on different countries)

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 7

Some informations about us:

Low noise 3.3VDC high torque linear stepper motor for intelligent TRV constant temperature radiator motor 8

Changzhou Vic-Tech Motor Technology Co.,Ltd( follows,we only call company) was founded in year 2011, the company mainly develops, manufactures and sells micro stepper motors, micro gearboxes, micro slider motor, micro linear motor and other products

The company is located in the Yangtze River Delta Economic Belt, one of the most economically developed regions in China, and is located in Changzhou City, Jiangsu Province, with a beautiful environment. The company is 20 kilometers away from Changzhou Airport, 5 kilometers away from the high-speed railway station, and 1 kilometers away from the high-speed intersection. And Shanghai and Nanjing are about 120 kilometers away. The transportation is very convenient, domestic and international logistics and transportation are very developed and convenient!

The main technical personnel of the company have worked in related industries for more than 10 years, and have working experience in foreign companies such as Japan, South Korea, Europe and the United States, and have working experience in domestic listed companies. Have systematic product development ability, perfect project management ability and good customer communication ability. The company has developed more than 30 customized projects for domestic and international first-class companies, and has cooperated with more than 20 large companies.

For motors with special specifications (number of phases, voltage, reduction ratio) and other size modifications, we can customize them according to the actual needs of customers. If customers need more information, please feel free to contact me.
